Stop guessing where your nerves are. When I place a dental implant without a CT scan, I’m working with educated assumptions based on 2D X-rays and anatomical averages. With a dental implant CT scan in Henderson, I’m working with precise measurements of your specific anatomy down to the millimeter.
A 3D cone beam CT scan reveals the exact location of your inferior alveolar nerve, the precise thickness of your jawbone at the implant site, the density of your bone tissue, and the position of your sinus cavities. It shows me anatomical variations that occur in about 30% of patients – variations that can’t be detected on standard dental X-rays.
I learned this lesson early. A patient came for a lower molar replacement. Standard X-rays looked perfect. But I ordered a CT scan. That scan revealed a nerve loop – an anatomical variation where the nerve dips down and comes back up, creating a danger zone right where I planned to place the implant. Without that CT scan, I would have hit that nerve. With it, I adjusted the implant position by 3 millimeters and completed the surgery without incident.
Your implant surgery deserves that same level of precision.
What a Dental Implant CT Scan Shows That X-Rays Can’t
Traditional dental X-rays give me a flat, two-dimensional picture of your jaw. A dental implant CT scan in Henderson creates a complete 3D model, letting me examine your anatomy from every angle, slice by slice.
The technical term is CBCT – cone beam computed tomography. You sit or stand still for 30 to 60 seconds while the machine rotates once around your head, capturing hundreds of images that software reconstructs into a detailed 3D model.
Bone Density and Quality
The CT scan measures bone density in Hounsfield units, giving me objective data about bone quality at the exact implant site. Dense cortical bone? The scan shows me how thick that layer is. Softer trabecular bone? I can see the pattern and density of those supporting structures.
This matters because bone density determines implant stability. Dense bone typically supports immediate loading with temporary crowns. Softer bone requires longer healing before we add any restoration. Without CT imaging, I’m estimating bone quality during surgery. With it, I know before I make the first incision.
Nerve Location Mapping
Your inferior alveolar nerve runs through your lower jaw, carrying sensation to your lower lip, chin, and teeth. In about 30% of patients, it doesn’t follow the predictable path.
The CT scan traces the nerve’s exact path through your jaw. I measure the distance from the nerve to my planned implant position. If that distance is less than 2 millimeters, I adjust the plan. Patient safety isn’t worth the risk of nerve damage that causes permanent numbness.
Sinus Cavity Boundaries
Upper back teeth sit close to your maxillary sinuses. The CT scan shows me the exact floor of your sinus cavity and how much bone exists between that floor and where I need to place your implant.
If you have 10 millimeters of bone height, I can place a standard-length implant. If you have 6 millimeters, we’re looking at a sinus lift procedure. If you have 4 millimeters, we’re discussing bone grafting first. The CT scan answers these questions during consultation, not as a surprise during surgery.
Hidden Anatomical Variations
About one in three patients has anatomical variations that don’t show up on standard X-rays. Accessory nerve canals. Unusual blood vessel pathways. Retained root tips from previous extractions. Areas of bone resorption that look solid on 2D imaging but show as voids in 3D.
The 3D imaging for dental implants reveals these variations before they become problems. I’ve seen cases where panoramic X-rays showed adequate bone, but the CT scan revealed significant lingual concavity – the inner surface of the jaw curving inward dramatically.
How 3D Imaging Prevents Implant Complications Before They Happen
The difference between a complication during surgery and a complication prevented during planning is everything. One requires emergency management and sometimes implant removal. The other never happens at all.
Nerve Damage Prevention
Inferior alveolar nerve injury causes numbness in the lower lip and chin that can last months or become permanent. A CT scan for dental implants in Henderson lets me measure the safety margin before surgery. I create a digital treatment plan showing the implant in relation to the nerve canal.
If the margin is less than 2 millimeters, I have options: adjust the implant angle, use a shorter implant, or select a different diameter. Every decision gets made at a computer, not during surgery with the patient under sedation.
Sinus Perforation Avoidance
Perforating the maxillary sinus during upper implant placement creates immediate complications. The surgical site can’t heal properly. The implant might fail.
The cone beam CT scan shows me the sinus floor anatomy with submillimeter accuracy. When the measurement shows insufficient height, we discuss sinus lift procedures before the implant surgery, not as an emergency modification during it.
Accurate Bone Grafting Determination
Bone grafting adds cost, healing time, and complexity. Patients want to know: do I really need it? The CT scan gives us a definitive answer.
I can measure bone width at the implant site. Standard implants need at least 6 millimeters of width. If your ridge measures 4 millimeters, we need ridge augmentation. The 3D imaging also shows bone quality – sometimes adequate dimensions hide insufficient cortical support.
Surgical Guide Creation
Once I’ve planned the implant position digitally using CT scan data, I can fabricate a surgical guide – a custom device that fits over your teeth or gums and directs the drill to the exact position and angle planned on the computer.
This guided surgery reduces the margin of error from millimeters to fractions of a millimeter. The drill can only go where the guide allows. Patients experience shorter surgery times, less tissue trauma, and more predictable outcomes.
What to Expect During Your Dental Implant CT Scan in Henderson
Patients often worry that getting a CT scan will be complicated or uncomfortable. The reality is much simpler.
The Scan Takes Less Than a Minute

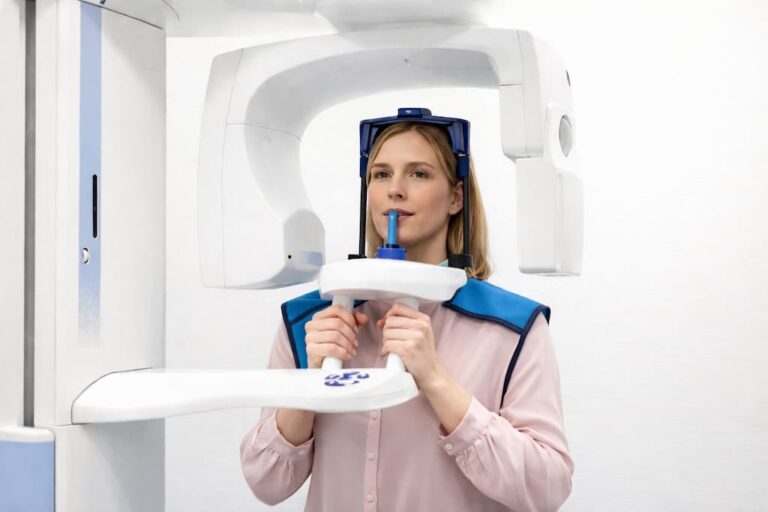

You’ll sit in a chair or stand while a technician positions your jaw in the center of the scanning area. The machine rotates once around your head, taking 30 to 60 seconds total. You don’t go into a tunnel. You don’t hold your breath. You just stay still. Most patients find it less uncomfortable than getting dental impressions.
Radiation Exposure Is Minimal
A typical CBCT scan for implant planning delivers about 50 to 100 microsieverts of radiation. For comparison, a panoramic dental X-ray delivers about 10 microsieverts, and a medical chest CT delivers about 7,000 microsieverts.
The diagnostic value of seeing your complete jaw anatomy in 3D far outweighs the minimal radiation exposure.
No Preparation Required
You don’t need to fast. You don’t need to stop medications. You simply show up. You’ll be asked to remove any metal objects – earrings, necklaces, hairpins – because metal creates artifacts on the scan images.
The whole process from check-in to walking out takes about 15 minutes.
Results and Digital Planning

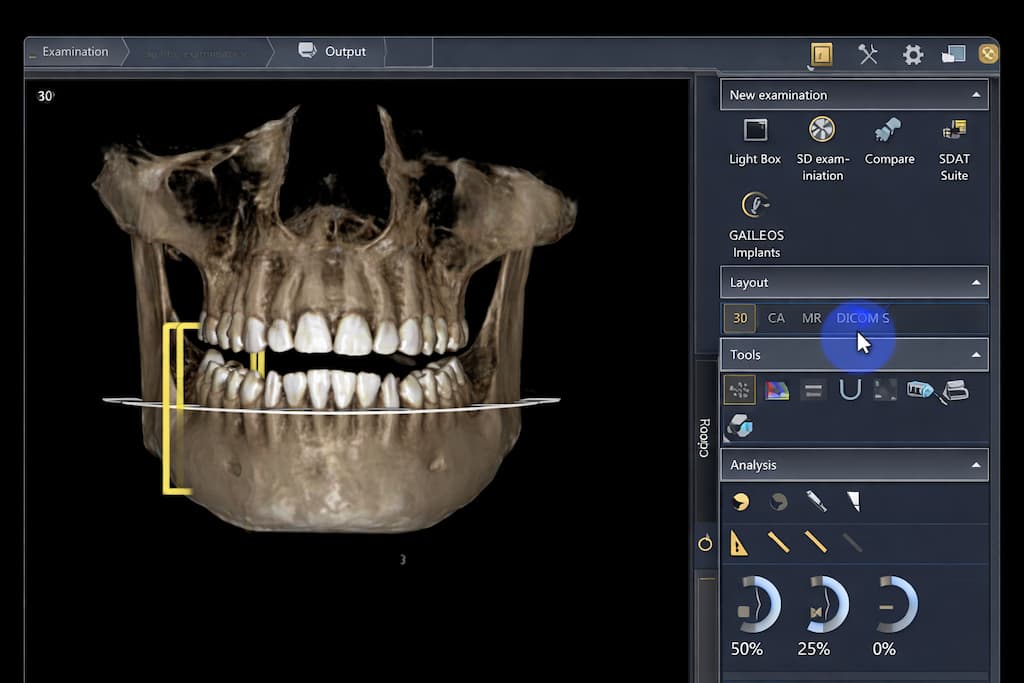

Once the scan completes, images are available within minutes. I import them into specialized implant planning software that reconstructs your jaw in three dimensions.
Using the software, I place virtual implants into your digital jaw model. I select the diameter and length. I adjust the position and angle. I verify clearance from nerves and sinuses. Every “what if” scenario gets tested digitally before we touch your actual jaw.
This digital planning can take 30 minutes for a single implant or several hours for a full-arch case. The investment in planning time reduces surgery time and complications dramatically.
Guided Surgery Advantages
Once the digital plan is finalized, we can fabricate a surgical guide. During surgery, I use the guide to direct my drill. The sleeve controls both position and angle.
Guided surgery based on CT imaging reduces angular deviation to less than 3 degrees and positional deviation to less than 1 millimeter. Freehand placement typically shows deviations of 5 to 10 degrees and 2 to 3 millimeters.
Cost Considerations
A cone beam CT scan for dental implant planning typically costs between $250 and $500 in the Henderson area. Some dental insurance plans cover a portion when deemed medically necessary.
Many patients see the CT scan as optional. I see it as essential diagnostic information that makes every other part of the implant process more predictable. Spending $300 on a CT scan that prevents a $3,000 complication isn’t optional spending. It’s smart planning.
Why More Henderson Patients Demand CT Scans Before Implant Surgery
Ten years ago, dental implant CT scans were optional. Today, informed patients in Henderson specifically ask about 3D imaging during consultations. They’ve done their research. They understand the benefits.
Peace of Mind and Better Outcomes
Patients tell me they sleep better knowing we planned their surgery with detailed 3D imaging. They’re not worried about surprises or potential complications we might have missed.
Guided surgery based on CT planning cuts surgical time by 20 to 30%. Less time in the chair means less anesthesia, less fatigue, and less post-surgical inflammation.
Implants placed with CT guidance show higher success rates and fewer complications. The positioning is more accurate. The angle better supports the final restoration. We’re talking about the difference between 95% success rates and 98% success rates over ten years.
Local Access in Henderson
Henderson residents don’t need to travel elsewhere for advanced implant imaging. The technology is available right here. Having cone beam CT capabilities in Henderson means faster turnaround on treatment planning – everything happens in-house.
The Standard of Care Has Evolved
Major dental organizations now recommend 3D imaging for implant planning. Continuing education courses emphasize CT-guided protocols. Henderson patients recognize this evolution and compare practices based on diagnostic capabilities.
Moving Forward with Complete Confidence
The dental implant CT scan in Henderson isn’t an add-on service or an optional upgrade. It’s the foundation of successful implant treatment. Every measurement we take, every decision we make, and every surgical step we plan comes back to the detailed anatomical information that 3D imaging provides.
I’ve placed implants without CT scans. I’ve also placed them with comprehensive CBCT imaging and digital planning. The difference in predictability, efficiency, and outcomes isn’t subtle. It’s the difference between educated guessing and precise knowledge.
Your jawbone has a specific shape, specific bone density, specific nerve positions, and specific anatomical variations that belong to you alone. Average measurements from textbooks don’t apply. Only your CT scan reveals what actually exists in your jaw.
When you choose a practice that makes cone beam CT imaging standard for implant planning, you’re choosing a practice that prioritizes accuracy over assumption. You’re choosing surgical precision over surgical estimates.
The technology exists in Henderson. The expertise to interpret and use that technology exists in Henderson. The question isn’t whether 3D dental imaging improves implant outcomes – multiple studies confirm it does. The question is whether you’ll benefit from that improvement.
Schedule your implant consultation at our Henderson practice. We’ll discuss your specific case, take a comprehensive CT scan, and show you exactly what treatment your anatomy requires. You’ll see the 3D images. You’ll understand the plan. You’ll move forward with the confidence that comes from complete information.
Ready to see your jaw in three dimensions? Let’s start with imaging that sets your implant treatment up for long-term success.
Frequently Asked Questions: Dental Implant CT Scan
What is a dental implant CT scan?
A dental implant CT scan, often a cone beam CT (CBCT), is a 3D imaging procedure that provides detailed views of your jaw, bone, teeth, and nerve pathways to help plan precise implant placement.
Why is a CT scan important for dental implant planning?
A CT scan allows clinicians to evaluate bone density, anatomical structures, and nerve locations in three dimensions—improving accuracy, safety, and implant success rates compared to traditional X-rays.
How is a cone beam CT different from regular dental X-rays?
Cone beam CT offers a 3D image of teeth, bone, and surrounding tissues, whereas standard X-rays are two-dimensional and provide limited anatomical detail.
Does a dental CT scan hurt, and how long does it take?
No, a CBCT dental CT scan is painless and typically takes less than a minute, with the patient standing or seated while the scanner rotates around the head.
Are dental CT scans safe?
Cone beam CT uses low radiation levels compared to medical CT scans, and is generally considered safe when used appropriately for treatment planning.
Will I need a CT scan for all dental implants?
Not always, but many specialists recommend CBCT imaging when detailed spatial information is essential for complex implant planning or if critical structures like nerves are near the implant site.
